Predictive Maintenance is a Data Engineering Problem, Not a Mechanical One

The traditional maintenance calendar is a relic of the steam age. Most industrial facilities still rely on time-based intervals to replace bearings or lubricate joints, a strategy that inevitably leads to two catastrophic outcomes: replacing perfectly functional components or missing a failure that occurs between cycles. In a high-throughput robotic cell, a single unplanned motor failure can cost an average of 260,000 USD per hour in lost productivity. Shifting to a health monitoring paradigm requires a fundamental realization that the robot is no longer just a mechanical arm, but a high-frequency data generator.

True machinery health monitoring, or Prognostics and Health Management (PHM), focuses on the delta between current performance and a known baseline. It asks why a joint is drawing 5% more current than it did last Tuesday, rather than asking if it has been six months since the last service. By capturing vibration, thermal, and electrical signatures, engineers can identify the specific frequency of a failing ball bearing long before it seizes. This transition allows facilities to increase Overall Equipment Effectiveness (OEE) by 10-20% by eliminating the guesswork of the maintenance shop.

The Prerequisites for High-Fidelity Monitoring

You cannot build a predictive system on top of low-resolution data. Many teams make the mistake of relying on the robot's internal controller logs, which are often sampled at rates too low to capture the transient spikes indicative of early-stage mechanical wear. To implement a professional-grade system, you need dedicated hardware that bypasses the controller's latency. This ensures that the telemetry reflects the physical reality of the hardware rather than the interpreted version provided by the OEM software.

• Tri-axial Accelerometers: MEMS-based sensors capable of sampling at 10kHz+ to detect high-frequency vibration signatures.
• Thermal Imaging or RTDs: High-precision Resistance Temperature Detectors placed at joint housings to monitor frictional heat.
• Current Transformers (CTs): Non-invasive clamps on motor leads to monitor power quality and torque anomalies.
• Edge Gateway: An industrial PC or PLC with sufficient compute to perform Fast Fourier Transforms (FFT) locally.
• Time-Series Database: A storage layer like InfluxDB or Prometheus designed for high-write volumes of timestamped data.

Once the hardware is in place, the challenge shifts to data transport. Relying on standard Wi-Fi in a factory environment is a recipe for packet loss and jitter, which corrupts time-series analysis. Industrial Ethernet or dedicated 5G private networks are necessary to ensure that the telemetry arrives in a linear, unbroken stream. Without strict temporal alignment, comparing the vibration of Axis 1 with the current draw of Axis 3 becomes impossible, rendering the entire monitoring effort useless.

The Implementation Workflow

1. Map the Criticality Matrix: Identify which robotic joints are the most likely points of failure and the most costly to the workflow. In an automotive assembly line in Querétaro, Mexico, the welding arm's wrist joint is typically the highest priority due to constant high-torque oscillations.

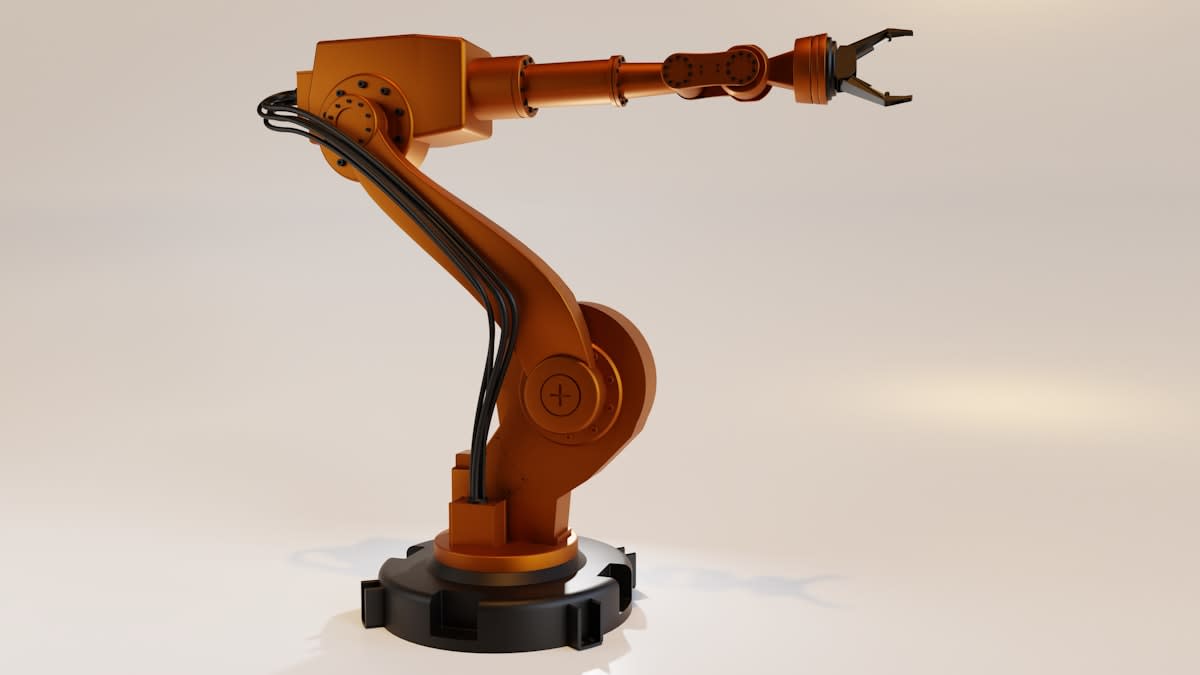

2. Deploy High-Frequency Sensors: Install accelerometers on the motor housings and RTDs on the gearboxes. Ensure the sensors are rigidly coupled to the machine to avoid capturing 'ambient noise' from the factory floor.
3. Establish the Golden Baseline: Run the robot through its standard production cycle for 100 hours under normal load. Capture this data to create a 'digital signature' of what a healthy machine looks like across all frequencies.
4. Implement Edge-Based FFT: Instead of sending raw waveforms to the cloud, use the edge gateway to convert time-domain data into frequency-domain data using Fast Fourier Transforms. This reduces data bandwidth and highlights specific fault frequencies (e.g., inner race vs. outer race bearing failure).
5. Set Dynamic Thresholds: Avoid static alarms. Use standard deviation (sigma) to trigger alerts. For example, a 3-sigma deviation from the baseline vibration in the 2kHz-5kHz band should trigger a 'Warning' state.
6. Close the Loop with Maintenance: Integrate the alerts directly into the Computerized Maintenance Management System (CMMS). An anomaly should automatically generate a work order with the specific fault frequency attached, telling the technician exactly what to look for.

The transition from raw data to actionable insight happens in the frequency domain. While a time-domain graph shows a messy wave of vibration, an FFT reveals a series of sharp peaks. A peak at a specific frequency corresponds to the physical geometry of the bearing or gear. When that peak begins to grow in amplitude, you are seeing the physical degradation of the metal in real-time. This is how a technician in a Hsinchu semiconductor fab can predict a vacuum robot failure three weeks before the machine actually stops.

Integration with the broader industrial ecosystem is the final hurdle. The health monitoring system must communicate with the PLC to potentially slow down the robot's cycle speed when a warning is triggered. This 'graceful degradation' prevents a catastrophic failure and allows the machine to finish its current batch before the maintenance team intervenes. By reducing the speed by 15%, you can often extend the life of a failing bearing by several days, saving the cost of an emergency shutdown.

Quantifying the Impact

The financial justification for these systems is found in the reduction of 'waste'—both in terms of parts and time. When a facility moves to PHM, they typically see a 25-30% reduction in overall maintenance costs because they stop replacing parts that still have 40% of their useful life. More importantly, the risk of a 'black swan' event—a total system collapse during a peak production window—is virtually eliminated. The system provides a window of visibility that turns a crisis into a scheduled task.

Common Pitfalls in Implementation

The most frequent failure point is the 'False Positive Spiral.' If thresholds are set too tight, the system will trigger alarms for every minor fluctuation in the environment, such as a nearby forklift moving or a change in ambient temperature. Maintenance teams will quickly learn to ignore these alerts, leading to a culture of complacency. This is why baselining must be dynamic, accounting for different load profiles and environmental conditions over a full seasonal cycle.

Another critical error is ignoring the human element of the workflow. A high-tech monitoring system is useless if the technician on the floor doesn't trust the data. The system must provide 'explainable' alerts. Instead of saying 'Anomaly Detected in Axis 2,' the system should report 'Vibration increase at 120Hz suggests bearing wear in Joint 2.' Providing the 'why' behind the alert is the only way to ensure the maintenance team actually acts on the data.

Finally, many firms fail by attempting to implement the entire fleet at once. The complexity of tuning thresholds for fifty different robots is an operational nightmare. The correct approach is to start with a single 'pilot cell,' refine the baseline, and prove the ROI by catching one single failure. Once the value is demonstrated, the system can be scaled across the plant using a standardized sensor kit and a centralized dashboard.
